DRL robot navigation + live SLAM

A Twin-Delayed DDPG (TD3) agent drives a Pioneer 3-DX robot through an unknown, cluttered room in ROS 2 + Gazebo, reaching randomly spawned goals collision-free from raw 3D LiDAR, while slam_toolbox builds a live occupancy-grid map of the room as it explores. Built as an Integrator Project at GIPSA-Lab, Grenoble INP and documented in a published paper.

View the code ↗ Read the paper ↗ Watch the demo ↗

Project goal

Send a mobile robot to an arbitrary goal point in an unknown, cluttered room using only its onboard perception, no map handed to it in advance, no classical motion planner in the loop. The task is framed as a Markov Decision Process and solved end-to-end with TD3, an off-policy algorithm for continuous action spaces. Formally it is goal-conditioned continuous control: the policy maps a 24-dimensional observation, what the robot senses of the world, plus where its goal is relative to it, onto a continuous (linear, angular) velocity command, learning obstacle avoidance and goal seeking together.

The robot perceives its surroundings through a simulated Velodyne VLP-16 3D LiDAR and takes its pose from odometry. On top of the goal-reaching policy the robot runs online SLAM: as the agent drives around chasing continuously re-sampled goals, slam_toolbox assembles an occupancy grid of the room in real time, turning a point-to-point navigation policy into an autonomous exploration & mapping system. Everything runs in simulation; the repository ships a pre-trained policy so the agent can be watched navigating and mapping without training from scratch.

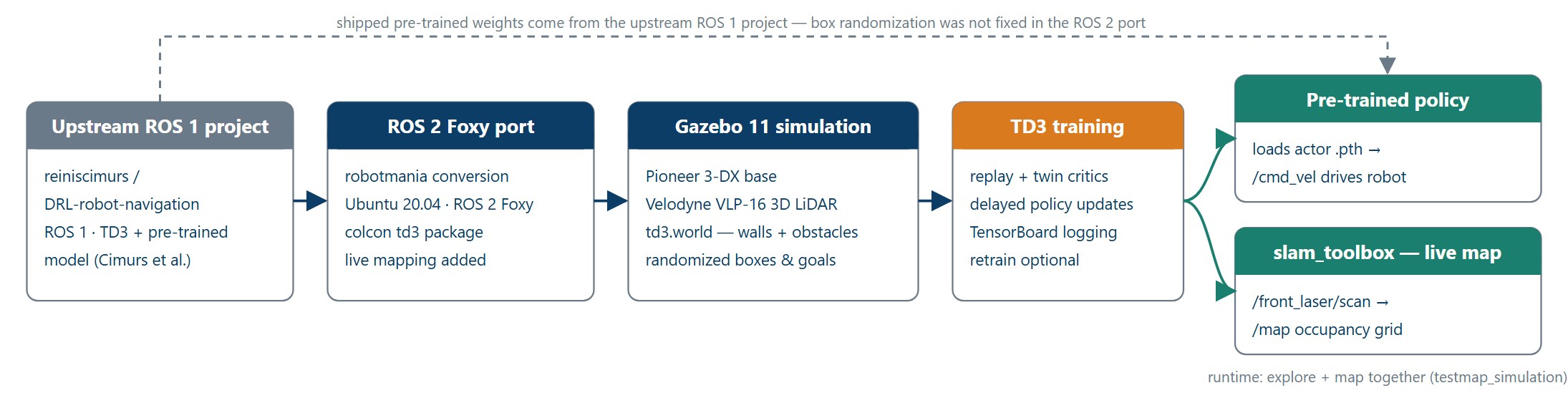

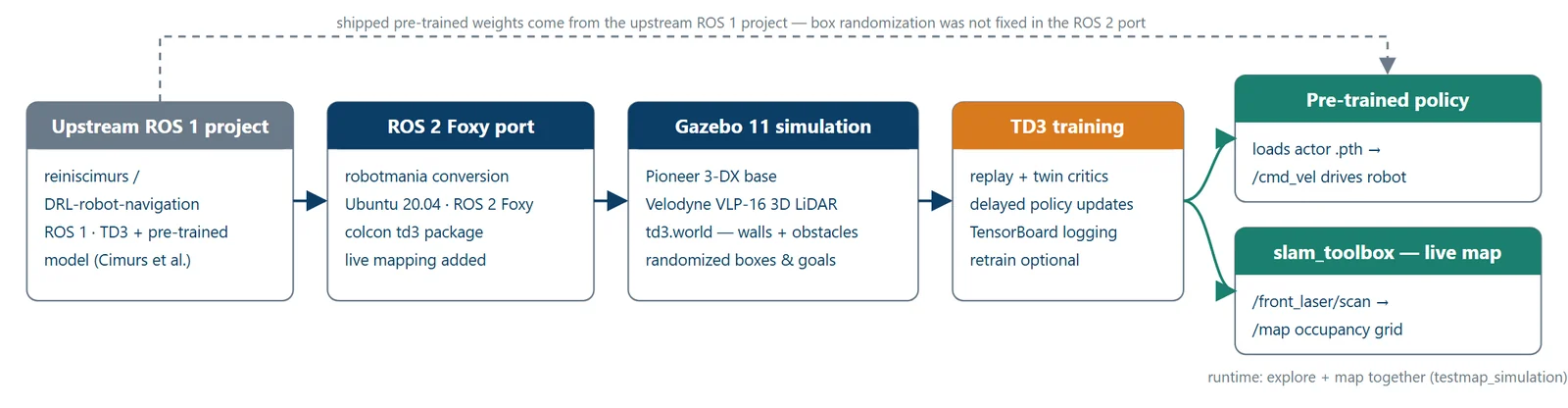

From idea to simulation

This project is, honestly, a port and an extension rather than a clean-sheet build, and it is credited that way. The foundation is Reinis Cimurs’ ROS 1 project reiniscimurs/DRL-robot-navigation, the original TD3 navigation agent and its pre-trained model. The work here ports that stack to ROS 2 Foxy (building on a community conversion by robotmania) and adds live map generation during exploration, so the system does not just reach goals but produces a usable map while doing so.

The simulated platform is a Pioneer 3-DX differential-drive base carrying a Velodyne VLP-16, defined as a robot description (URDF + the vendored Velodyne Gazebo plugin) and dropped into a hand-made Gazebo 11 world (td3.world), a walled room seeded with cross- and triangle-shaped obstacles and scattered cardboard boxes, with goal positions randomized on every reset to diversify training. The whole thing is organised as clean, colcon-buildable ROS 2 packages (robot description, world, launch files, RViz config, and the RL node), targeting the Ubuntu 20.04 / ROS 2 Foxy / Python 3.8 / PyTorch stack used in the paper. It was carried out as an Integrator Project at GIPSA-Lab, Grenoble INP / Université Grenoble Alpes (2024).

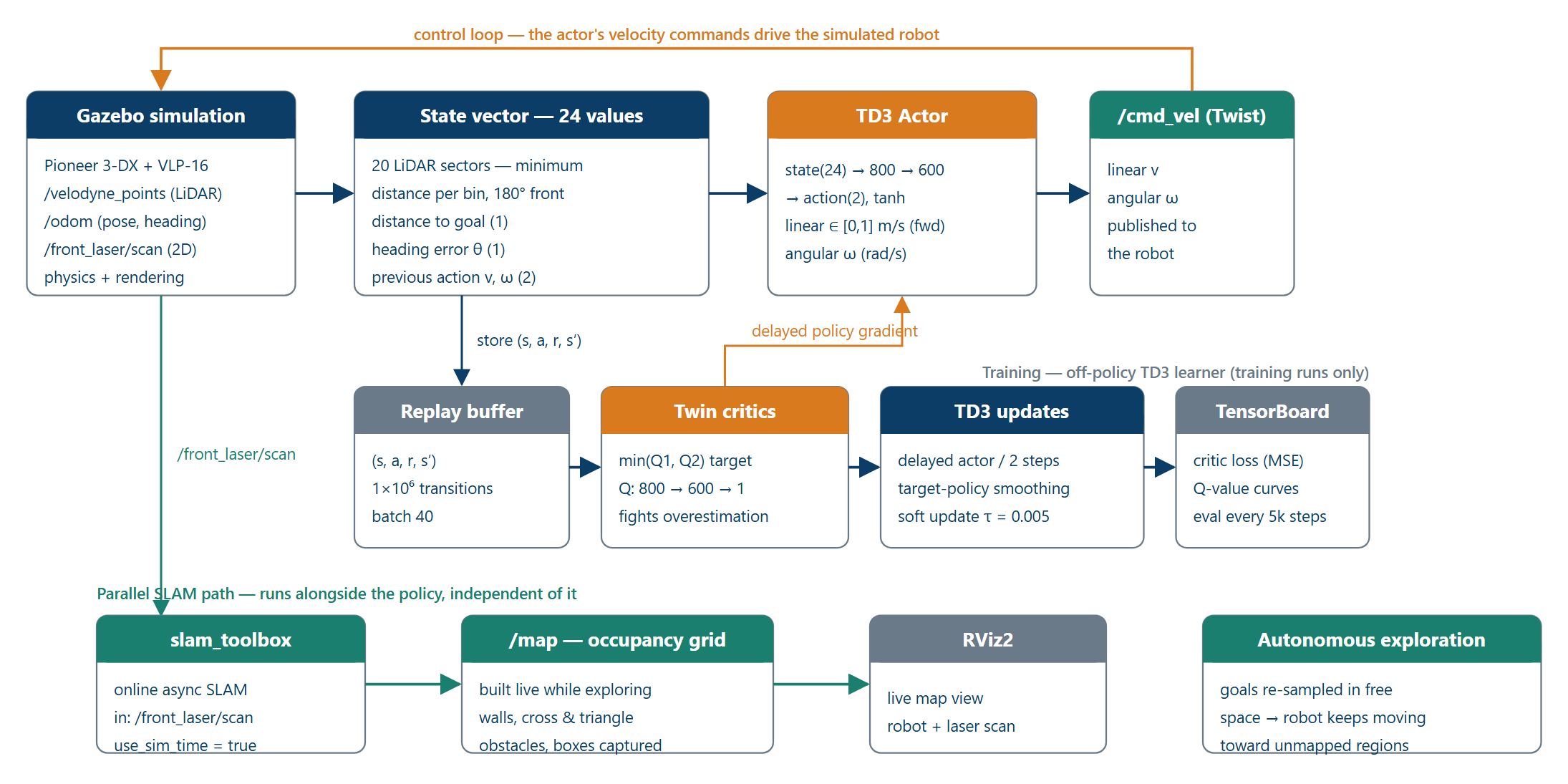

Implementation & architecture

The 24-value state. The Velodyne point cloud is collapsed into 20 angular sectors spanning the 180° in front of the robot; each sector holds the minimum obstacle distance in that wedge, a compact obstacle map that is cheap for the network to read. To that the state appends the Euclidean distance to the goal, the heading error θ (the angle between the robot’s facing and the direction to the goal), and the previous commanded action (v, ω), 20 + 1 + 1 + 2 = 24 inputs in all.

The action. The actor emits two tanh-bounded numbers. The first is remapped from [-1, 1] to [0, 1] m/s so the robot only ever drives forward; the second is the angular velocity in rad/s. Together they are published to /cmd_vel as a geometry_msgs/Twist, closing the control loop back through the simulator. A shaped reward does the teaching: +100 for reaching the goal (within 0.30 m), −100 for a collision (nearest LiDAR return below 0.35 m), and otherwise a small dense term (v/2 − |ω|/2 − proximity) that rewards driving forward, penalizes spinning, and pushes the robot away from anything close.

The learner is textbook TD3. The actor is an MLP (24 → 800 → 600 → 2, ReLU hidden layers, tanh output). The critic is twin, two independent Q(state, action) heads, each → 800 → 600 → 1, and the minimum of the two target Q-values is used to fight the overestimation bias that plagues single-critic actor–critics. Learning adds the two other TD3 ingredients: delayed policy updates (the actor and target networks refresh only every second critic step) and target-policy smoothing (clipped noise on the target action). Transitions land in a replay buffer (10⁶ capacity, batches of 40), targets track slowly via Polyak soft updates (τ = 0.005, γ = 0.99999), and exploration noise decays from 1.0 to 0.1 over the first 5×10⁵ steps while the greedy policy is evaluated periodically. Loss and Q-value curves are streamed to TensorBoard throughout.

SLAM runs beside the policy, not inside it. The robot also publishes a 2D laser scan on /front_laser/scan; a separately launched slam_toolbox node (online-async, use_sim_time) consumes that scan and emits a /map occupancy grid that fills in live in RViz. The two systems are deliberately decoupled, the learned controller never sees the map, and mapping never touches the policy, so exploration is a pure by-product of the goal-driven driving.

Critical challenges

The physics quirk that changed which weights ship

The training environment was meant to scatter the cardboard boxes on every reset to keep episodes diverse, but in the ROS 2 / newer-Gazebo port the boxes stopped repositioning, most likely a side effect of the ROS 1 → ROS 2 migration. With the randomization broken, a policy trained from scratch here saw a far less varied world and its quality suffered. The pragmatic, honest resolution was to ship and demo the pre-trained policy from the upstream ROS 1 project rather than a weaker locally-trained one, a reminder that a small simulator regression during a port can quietly undermine the data distribution the whole method depends on.

Unstable training under a real time budget

Training from scratch was not reliably convergent within the project’s means: the average Q-value would sometimes decrease mid-run (the agent stopped improving), and a full run takes roughly 8–10 hours. Converging a fresh TD3 policy to the quality of the upstream model needed more compute and wall-clock time than the Integrator Project allowed, which, combined with the box-randomization regression above, is exactly why the demonstrated agent uses the upstream weights. This is stated plainly rather than papered over.

Honest scoping

Three limitations are worth naming. The project is simulation-only, there is no physical robot, and no sim-to-real claim is made. Several scripts use hard-coded paths relative to the home directory (the policy loads from a fixed ./DRL_robot_navigation_ros2/… location), so the workspace expects to be cloned into ~. And a vendored Cartographer configuration (omni_cartographer) is kept for reference only and is not used at runtime; all live mapping is done with slam_toolbox.

Results & analysis

The clip shows the full system running: the pre-trained TD3 policy continuously re-targets goals and threads the Pioneer 3-DX between the obstacles, while the parallel SLAM node turns those wanderings into a map. What is worth watching is that the two halves of the screen are independent, the robot on the right is driven purely by the learned velocity controller, and the map on the left is assembled from its laser scan without ever feeding back into the policy.

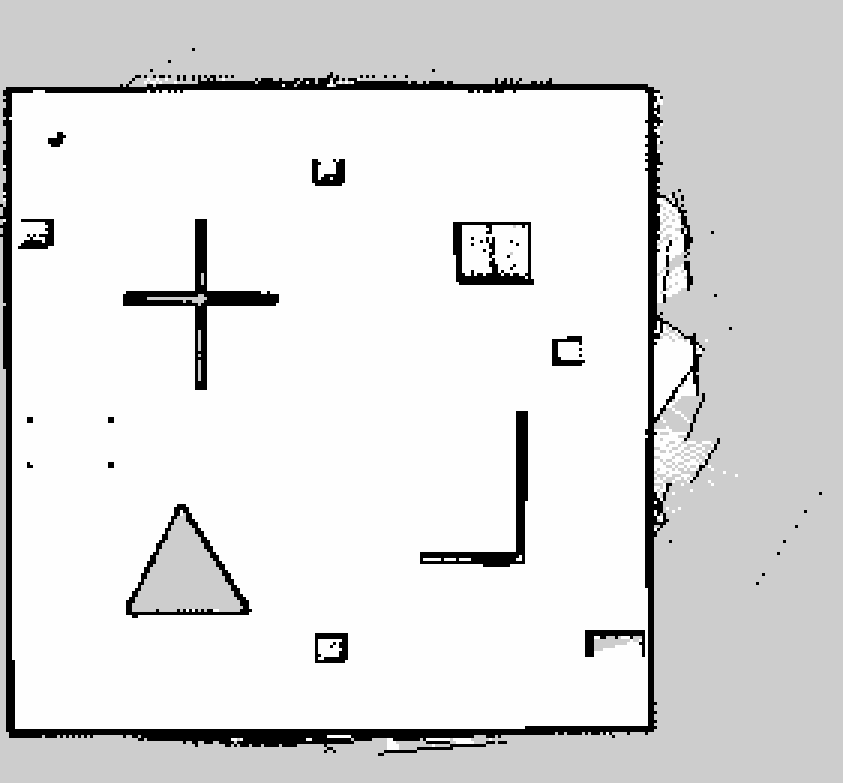

The map is the headline result: it demonstrates the end-to-end goal, a robot with no prior knowledge of the room, driven by a learned policy, produces a coherent occupancy grid in which every structural feature of the world is recognisable. Training itself is instrumented with TensorBoard (loss and Q-value curves), but because the from-scratch runs were unstable and compute-limited, those curves are treated as monitoring rather than as a headline claim, the demonstrated navigation and mapping quality comes from the upstream-trained policy, and this page reports it as such.

Future work

Directions the paper and repository flag for anyone continuing the work:

• Fix the box-randomization / physics regression in the ROS 2 Gazebo port and successfully retrain a policy from scratch, so the shipped weights are the project’s own rather than inherited.
• Add a global exploration strategy that samples goals toward unmapped regions instead of anywhere in free space, so the room is explored, and mapped, faster and more completely.
• Port to a TurtleBot and validate on real hardware (for example in the GIPSA-Lab), taking the system out of simulation for the first time.
• Package the Python dependencies and paths so the workspace builds and runs from any location, retiring the hard-coded home-directory assumptions.

Developed with Saleh Abuali and Perla Sammour, supervised by Bogdan Robu and Ahmad Hably, at GIPSA-Lab, Grenoble INP / Université Grenoble Alpes (2024). It builds on Cimurs et al., Goal-Driven Autonomous Exploration Through Deep Reinforcement Learning (IEEE RA-L, 2022).
